- Specification

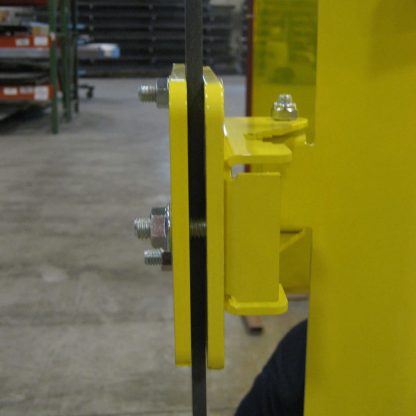

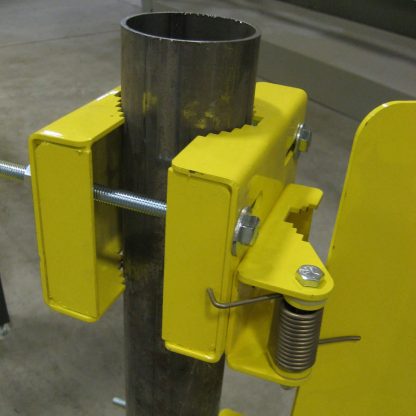

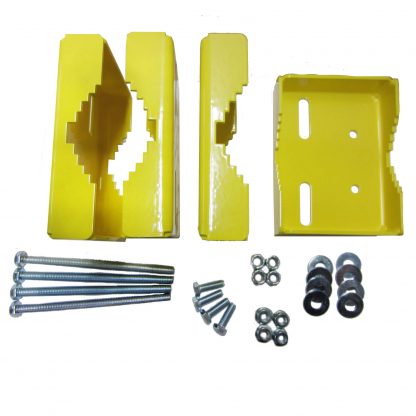

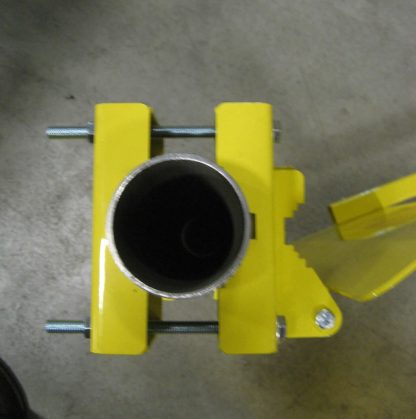

Description When using the Optional Adapter Brackets, add 1-1/4″ (1.25in) to minimum and 2″ to maximum (2in). For example: A standard LSG-15 without adapter brackets fits an opening range of 13-3/4″ to 17-1/2″. However if you required an adapter bracket; you will have to accommodate the width of the adapter as well. So when using an adapter kit on the LSG-15 the opening range changes to 15″ to 19-1/2″ Size guide GATE SIZING CHART – WITH OR WITHOUT ADAPTOR BRACKETS MODEL SIZE FITS OPENING RANGES Without Brackets With Adapter Brackets LSG-15 13-3/4″ – 17-1/2″ 15″- 19-1/2″ LSG-18 16-3/4″ – 20-1/2″ 18″ – 22-1/2″ LSG-21 19-3/4″ – 23-1/2″ 21″ – 25-1/2″ LSG-24 22-3/4″ – 26-1/2″ 24″ – 28-1/2″ LSG-27 25-3/4″ – 29-1/2″ 27″ – 31-1/2″ LSG-30 28-3/4″ – 32-1/2″ 30″ – 34-1/2″ LSG-33 31-3/4″ – 35-1/2″ 33″ – 37-1/2″ LSG-36 34-3/4″ – 38-1/2″ 36″ – 40-1/2″ LSG-40 38-3/4″ – 42-1/2″ 40″ – 44-1/2″ LSG-44 42-3/4″ – 46-1/2″ 44″ – 48-1/2″ LSG-48 46-3/4″ – 50-1/2″ 48″ – 52-1/2″ This product’s sole purpose is to allow attachment of the LSG – Ladder Safety Gates to large or unique railing systems. The adapter kit is completely optional and should only be considered when connecting the LSG to angle iron, flat bar, large pipe or any other nonstandard railing system. The PS Doors LSG – Ladder safety gates ship fully assembled and come pre-packed with standard mounting hardware for round pipe ( up to 2″ O.D ) or square tubing ( up to 1.5″ X 1.5″ O.D ).
Specification
| Ladder Safety Gate Adapter Brackets – PS Doors | GM-100 |
|---|---|
| Measuring Range | 1.2 ~ 225.0 mm (Steel) |
| Resolution | 0.1 mm |
| Accuracy | ±(1%H+0.1) mm (H denotes measured thickness of the object) |
| Display | Four-digit LCD display |
| Working Frequency | 5 MHz |
| Sound Velocity | Range: 1000 to 9999 m/s |
| Minimum limit for tube measuring | Ø 20 × 3 mm (Steel) |
| Features | Inverse sound velocity with known thickness |
| Measuring range by known thickness | 1000 to 9999 m/s. (Thickness of the test block must be less than 20 mm to measure speed of sound) |
| Operating Temp. | 0 to 40°C |
| Power Source | 3 × 1.5 V (AAA) |
| Dimensions | 72 × 146 × 29 mm |
| HSN | 90318000 |
| Price |
