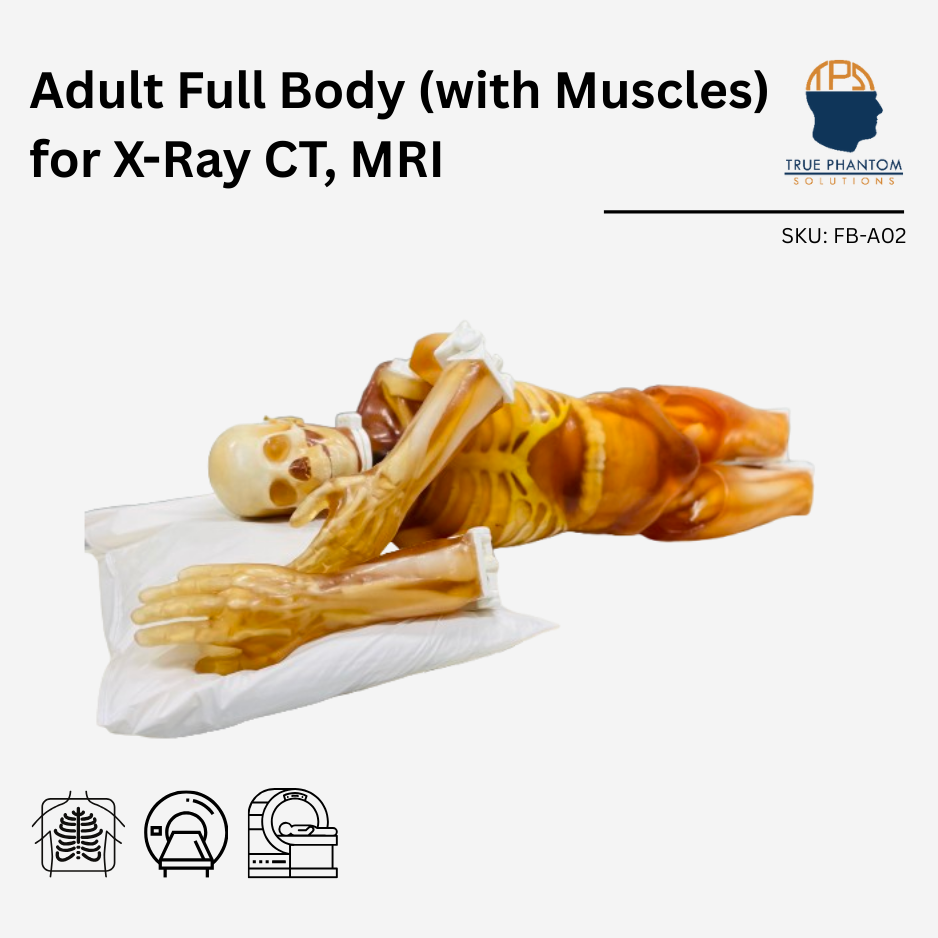

ADULT FULL BODY (WITH MUSCLES) FOR X-RAY CT, MRI

Adult Full Body Phantom with Muscles is an X-Ray/CT and MRI-compatible training product. The primary application of this phantom is hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions. In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.The model of this phantom is based on an adult male body that weighs about 70 kg (154 lb) and measures 172 cm (69 in) in height.The skeleton is built from individually cast bones with a realistic three-layered structure with inner porosity. The properties and structures of the bones can be adjusted according to the requirement of the particular project. Upon request, the phantom is customizable with different pathologies such as lesions, tumors, infections, and abnormalities. This positioning phantom can be ordered in a translucent or skin-colored version. Anatomy The following anatomical features are included in the standard version of this phantom. Should you require additional organs or components, please reach out to us and we can customize the model to suit your specific needs. Full Human Body (10 Parts)Realistic Body and Muscle Tissue-Mimicking MaterialRotatable Shoulders (360° Around and 180° Sideways)Movable Hip, Knee, and Elbow JointsDetachable Head, Torso, and LimbsAdult HeadSkullBrainBrain TissueGrey and White MatterAir CavitiesFrontal Sinus with Air GapsAdult TorsoSpineRibcageShouldersClaviclesPelvisTracheaHeartLungs with Bronchi (Air Ducts with Blood Vessels)DiaphragmLiver (with Ligaments & Bile Ducts)GallbladderStomachKidneysSpleenPancreasLarge and Small IntestinesBladderProstateAdult ArmsMajor MusclesHumerusElbow JointsRadiusUlnaWristFingersAdult LegsMajor MusclesFemurKnee JointsTibiaFibulaFootToesTransparent or Skin-Mimicking Appearance Product IMages Product Designs Product Parts Videos Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request. Disclaimer: The phantom displayed on this page is a synthetically fabricated training simulator. While it has been engineered to mimic the anatomy of an adult male for medical imaging, it is not meant to replace a live person and may have certain limitations in its capabilities. Unlike an actual human however, the phantom will not be harmed or deteriorated due to repeated radiation. It is designed for easy use by radiologists or students with minimal supervision. The phantom presents a safe alternative to using cadavers or volunteers. This makes it a sustainable, ethical choice for the early stages of research and education. Please review the design, description, and properties carefully before purchasing the model. Only manufacturing defects will be covered under two years of the standard warranty. For more details, please refer to our Warranty Policy and Return Policy. For any specific questions or concerns, please contact our technical team here. X-Ray SCANS CT SCANS MRI SCANS */ These X-Ray scans were obtained with a Control-X machine and a VXvue (DR plate). If you have any questions related to these, please write us at [email protected] /* Anatomy SkullRibs/ ChestT SpineC spineL SpineAbdomenPelvisFemurTib/FibKneeFootScap YHumerusHand/ WristProjectionAPLATAP/ PAAPLATAPAPLATLATAPAPLATAPLATAPAPPA/ ObliqueLATAP/ ObliqueLATE.I.375286412412782165448862862650584892551342690293631257556155D.I.-0.2-1.40.60.62.6-3.812.42.41.81.73.60.4-1.61.4-2.31-2.90.5-3.6kVp8575808085758890858580807474758058806484mAs208520566.34563252516142.52.55.6825.6210 */ These CT scans were obtained with a GE Revolution Spectral CT Frontier ES. If you have any questions related to these, please write us at [email protected] /* */ These MRI scans were obtained with a Siemens 1.5T Aera. If you have any questions related to these, please write us at [email protected] /* Technical Properties: Tissue Properties Adult Full BodyType of TissueSound Velocity[m/s]Density [g/cm3]Attenuation Measured at 2.25 MHz [dB/cm]Hardness [Shore OO]T2 [ms]SpecklesOrgans with Speckles (liver, kidneys, etc.)1435 ± 100.991.0 ± 0.22070VARIABLEOrgans without Speckles (stomach, intestines, etc.)1400 ± 100.991.0 ± 0.22070NOBody Tissue1410 ± 101.001.5 ± 0.23555NO/LOWTumor Feature (Optional)1400 ± 101.011.2 ± 0.23065YESCortical Bone3000 ± 302.316.4 ± 0.3N/AN/AN/ATrabecular Bone           2800 ± 502.0321 ± 2N/AN/AN/ABrain Matter 1400 ± 100.991.0 ± 0.22070YESBrain White Matter1400 ± 101.011.3 ± 0.23560YESMuscle Tissue1400 ± 101.011.3 ± 0.23560YESAll standard phantoms are coated with a protective layer of the harder urethane rubber to offer enhanced appearance and safeguard the phantom from any scratches when handled without care. This coated layer also provides a glossy finish and slightly changes the hardness of the phantom. The Hardness [Shore 00] for the ‘Body Tissue’ mentioned above is measured without the coat layer. The coat will increase the hardness by approximately 30 points meaning that if the body tissue hardness is OO 35, the coated body tissue will be OO 65.Thermal Properties of our Bone-Mimicking MaterialThermal ConductivityVolumetric Specific Heat CapacityThermal DiffusivityThermal ResistivitySpecific HeatSpeed of Sound0.776 W/ m K1.040 MJ/ m^3 K0.746 mm^2/ s1.289 m K/ W0.978 J/ g Deg Celsius3070 m/s HU Values of the Tissue Mimicking-Materials (scanned at 120kV and 99-154mA) Tissue TypeHU Value (Average)Body Tissue-25Brain Tissue-25Trabecular Bone800Cortical Bone1300Aorta40Vena Cava40Trachea80 (Tissue Part), -1000 (Air Filled Part)Lungs-850Diaphragm80Pancreas110 Tissue TypeHU Value (Average)Spleen110Kidneys110Bladder35Rectum Wall100Sigmoid Colon Wall100Heart40Liver110Gallbladder35Stomach-850Large and Small Intestines80 (Tissue Part), -1000 (Air Filled Part) View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below. View Tables Included in Order Adult Full Body (with Muscles) PhantomUser Manual/Assembly Instructions2-Year Warranty & Unlimited Customer ServiceHard Carry Case Size & Weight Phantom:Size: 69 InchesWeight: 154 Lbs (approx.).Shipment:Size: 46 x 36 x 17 InchesWeight: 199 Lbs (approx.) Materials Used: Soft tissue and organs: Composition of urethane-based soft resinSynthetic bones: Patented ceramic-reinforced epoxy-based composite material FAQ Please refer to our FAQ page.
